<Ratings>
  <Revision>{0,1}</Revision>
  <RatingType>{1,1}</RatingType>
  <Verifiers>{1,1}</Verifiers>
  <IECCcomplianceERI>{0,1}</IECCcomplianceERI>
  <Building>{1,1}</Building>
  <Registry>{1,1}</Registry>
  <Rating>{1,1}</Rating>
  <BuildersChallenge>{0,1}</BuildersChallenge>
  <EnergyStarV2>{0,1}</EnergyStarV2>
  <TaxCredit>{0,1}</TaxCredit>
  <EEM>{0,1}</EEM>
  <EEP>{1,1}</EEP>
  <HomeEnergyPerformance>{1,1}</HomeEnergyPerformance>
  <WarningFlags>{1,1}</WarningFlags>
</Ratings>

<xs:element name="Ratings">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="Revision" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="RegistryID">
              <xs:simpleType>
                <xs:annotation>
                  <xs:documentation>9-digit Numeric RegistryID</xs:documentation>
                </xs:annotation>
                <xs:restriction base="xs:string">
                  <xs:pattern value="[0-9]{9}"/>
                </xs:restriction>
              </xs:simpleType>
            </xs:element>
            <xs:element name="RevisionReason" type="xs:string"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="RatingType">
        <xs:simpleType>
          <xs:restriction base="xs:string">
            <xs:enumeration value="Confirmed"/>
            <xs:enumeration value="Confirmed Rating"/>
            <xs:enumeration value="Confirmed Threshold"/>
            <xs:enumeration value="Confirmed Threshold Rating"/>
            <xs:enumeration value="Sampled"/>
            <xs:enumeration value="Sampled Rating"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <xs:element name="Verifiers" minOccurs="1" maxOccurs="1">
        <xs:complexType>
          <xs:sequence maxOccurs="unbounded">
            <xs:element name="Verifier" minOccurs="1" maxOccurs="unbounded">
              <xs:complexType>
                <xs:all>
                  <xs:element name="Name" type="xs:string"/>
                  <xs:element name="ID" type="xs:string">
                    <xs:annotation>
                      <xs:documentation/>
                    </xs:annotation>
                  </xs:element>
                </xs:all>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="IECCcomplianceERI" minOccurs="0" maxOccurs="1">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="IECCversion">
              <xs:simpleType>
                <xs:annotation>
                  <xs:documentation>Enter 4-digit year of IECC code</xs:documentation>
                </xs:annotation>
                <xs:restriction base="xs:string">
                  <xs:pattern value="[0-9]{4}"/>
                </xs:restriction>
              </xs:simpleType>
            </xs:element>
            <xs:element name="ERIscore">
              <xs:simpleType>
                <xs:annotation>
                  <xs:documentation>Enter ERI score</xs:documentation>
                </xs:annotation>
                <xs:restriction base="xs:integer">
                </xs:restriction>
              </xs:simpleType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="Building">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="Address" type="xs:string"/>
            <xs:element name="Address2" type="xs:string"/>
            <xs:element name="City" type="xs:string"/>
            <xs:element name="State" type="state"/>
            <xs:element name="Zip" type="xs:string"/>
            <xs:element name="Builder" type="xs:string"/>
            <xs:element name="Community" type="xs:string"/>
            <xs:element name="PlanName" type="xs:string"/>
            <xs:element name="Model" type="xs:string"/>
            <xs:element name="Development" type="xs:string"/>
            <xs:element name="ConstructionYear">
              <xs:simpleType>
                <xs:annotation>
                  <xs:documentation>4-digit Year</xs:documentation>
                </xs:annotation>
                <xs:restriction base="xs:string">
                  <xs:pattern value="[0-9]{4}"/>
                </xs:restriction>
              </xs:simpleType>
            </xs:element>
            <xs:element name="PermitDate" type="xs:date" minOccurs="0">
              <xs:annotation>
                <xs:documentation>Enter Building Permit Date as YYYY-MM-DD</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="DwellingUnitID" type="xs:string" minOccurs="0">
              <xs:annotation>
                <xs:documentation>Enter Dwelling Unit Unique Identifier for ZERH program</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="Registry">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="ProviderID">
              <xs:simpleType>
                <xs:annotation>
                  <xs:documentation>ProviderID in the form XXXX-XXX</xs:documentation>
                </xs:annotation>
                <xs:restriction base="xs:string">
                  <xs:pattern value="[0-9]{4}[-][0-9]{3}"/>
                </xs:restriction>
              </xs:simpleType>
            </xs:element>
            <xs:element name="RaterID">
              <xs:simpleType>
                <xs:annotation>
                  <xs:documentation>RaterID in the form XXXXXXX</xs:documentation>
                </xs:annotation>
                <xs:restriction base="xs:string">
                  <xs:pattern value="[0-9]{7}"/>
                </xs:restriction>
              </xs:simpleType>
            </xs:element>
            <xs:element name="RatingCompany" type="xs:string">
              <xs:annotation>
                <xs:documentation>Enter name of Rating Company</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="ProviderSampleSetID" default="00000000">
              <xs:simpleType>
                <xs:annotation>
                  <xs:documentation>ProviderSampleSetID in the form XXXXXXXX</xs:documentation>
                </xs:annotation>
                <xs:restriction base="xs:string">
                  <xs:pattern value="[A-Z0-9]{4,8}"/>
                </xs:restriction>
              </xs:simpleType>
            </xs:element>
            <xs:element name="DateRated" type="xs:date">
              <xs:annotation>
                <xs:documentation>"Date Rated shall be the date of the final inspection"</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="ClimateZoneNo">
              <xs:simpleType>
                <xs:restriction base="xs:string">
                  <xs:enumeration value="1A"/>
                  <xs:enumeration value="1B"/>
                  <xs:enumeration value="2A"/>
                  <xs:enumeration value="2B"/>
                  <xs:enumeration value="3A"/>
                  <xs:enumeration value="3B"/>
                  <xs:enumeration value="3C"/>
                  <xs:enumeration value="4A"/>
                  <xs:enumeration value="4B"/>
                  <xs:enumeration value="4C"/>
                  <xs:enumeration value="5A"/>
                  <xs:enumeration value="5B"/>
                  <xs:enumeration value="6A"/>
                  <xs:enumeration value="6B"/>
                  <xs:enumeration value="7A"/>
                  <xs:enumeration value="7B"/>
                  <xs:enumeration value="8A"/>
                  <xs:enumeration value="8B"/>
                </xs:restriction>
              </xs:simpleType>
            </xs:element>
            <xs:element name="ClimateZoneNo2021" minOccurs="0">
              <xs:annotation>
                <xs:documentation>Where home is qualified for ZERH certification, enter post 2021 IECC climate zone</xs:documentation>
              </xs:annotation>
              <xs:simpleType>
                <xs:restriction base="xs:string">
                  <xs:enumeration value="1A"/>
                  <xs:enumeration value="1B"/>
                  <xs:enumeration value="2A"/>
                  <xs:enumeration value="2B"/>
                  <xs:enumeration value="3A"/>
                  <xs:enumeration value="3B"/>
                  <xs:enumeration value="3C"/>
                  <xs:enumeration value="4A"/>
                  <xs:enumeration value="4B"/>
                  <xs:enumeration value="4C"/>
                  <xs:enumeration value="5A"/>
                  <xs:enumeration value="5B"/>
                  <xs:enumeration value="6A"/>
                  <xs:enumeration value="6B"/>
                  <xs:enumeration value="7A"/>
                  <xs:enumeration value="7B"/>
                  <xs:enumeration value="8A"/>
                  <xs:enumeration value="8B"/>
                </xs:restriction>
              </xs:simpleType>
            </xs:element>
            <xs:element name="Status" default="New">
              <xs:simpleType>
                <xs:restriction base="xs:string">
                  <xs:enumeration value="New"/>
                  <xs:enumeration value="Existing"/>
                </xs:restriction>
              </xs:simpleType>
            </xs:element>
            <xs:element name="HomeTypeID" default="1">
              <xs:simpleType>
                <xs:annotation>
                  <xs:documentation>Single-Family=1, Duplex=2, Low-rise Multi-family=3, High-rise Multi-family=4</xs:documentation>
                </xs:annotation>
                <xs:restriction base="xs:string">
                  <xs:enumeration value="1"/>
                  <xs:enumeration value="2"/>
                  <xs:enumeration value="3"/>
                  <xs:enumeration value="4"/>
                </xs:restriction>
              </xs:simpleType>
            </xs:element>
            <xs:element name="ConditionedArea" type="xs:float"/>
            <xs:element name="ConditionedVolume" type="xs:float"/>
            <xs:element name="NumberBedrooms" type="xs:nonNegativeInteger"/>
            <xs:element name="ConditionedBasementArea" type="xs:float" default="0"/>
            <xs:element name="UnconditionedBasementArea" type="xs:float" default="0"/>
            <xs:element name="Software">
              <xs:simpleType>
                <xs:annotation>
                  <xs:documentation>RemRate=1, EnergyGauge=2, EnergyInsights=3, OptiMiser=4, Ekotrope=5, Right-Energy HERS=6</xs:documentation>
                </xs:annotation>
                <xs:restriction base="xs:string">
                  <xs:enumeration value="1"/>
                  <xs:enumeration value="2"/>
                  <xs:enumeration value="3"/>
                  <xs:enumeration value="4"/>
                  <xs:enumeration value="5"/>
                  <xs:enumeration value="6"/>
                </xs:restriction>
              </xs:simpleType>
            </xs:element>
            <xs:element name="SoftwareVersion" type="xs:string"/>
            <xs:element name="EPAAppID" type="xs:string" minOccurs="0">
              <xs:annotation>
                <xs:documentation>Optional EPA Rater Pro App ID as assigned by the EPA App</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="Standard301Version" minOccurs="1">
              <xs:annotation>
                <xs:documentation>Publication Year of RESNET/ICC 301 Standard used to determine the HERS Rating</xs:documentation>
              </xs:annotation>
              <xs:simpleType>
                <xs:restriction base="xs:string">
                  <xs:enumeration value="2014"/>
                  <xs:enumeration value="2019"/>
                  <xs:enumeration value="2022"/>
                </xs:restriction>
              </xs:simpleType>
            </xs:element>
            <xs:element name="InputFile" type="xs:string">
              <xs:annotation>
                <xs:documentation>CDATA tag must be used to enclose the InputFile string</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="Notes" type="xs:string"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="Rating">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="HERSIndex" type="xs:integer"/>
            <xs:element name="AnnualElectricity" type="xs:float" default="0"/>
            <xs:element name="AnnualGas" type="xs:float" default="0"/>
            <xs:element name="AnnualOil" type="xs:float" default="0"/>

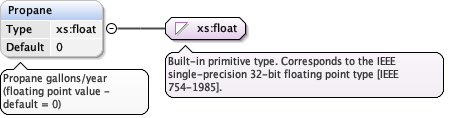

            <xs:element name="AnnualPropane" type="xs:float" default="0"/>
            <xs:element name="AnnualOPP" type="xs:float" default="0"/>
            <xs:element name="AnnualOther" type="xs:float" default="0"/>
            <xs:element name="PriceElectricity" type="float-or-empty"/>
            <xs:element name="PriceGas" type="float-or-empty"/>
            <xs:element name="PriceOil" type="float-or-empty"/>
            <xs:element name="PricePropane" type="float-or-empty"/>
            <xs:element name="CostHeating" type="xs:float" default="0"/>
            <xs:element name="CostCooling" type="xs:float" default="0"/>
            <xs:element name="CostHotWater" type="xs:float" default="0"/>
            <xs:element name="CostLighting" type="xs:float" default="0"/>
            <xs:element name="CostAppliances" type="xs:float" default="0"/>
            <xs:element name="CostOPP" default="0">
              <xs:simpleType>
                <xs:restriction base="xs:float">
                  <xs:maxInclusive value="0"/>
                </xs:restriction>
              </xs:simpleType>
            </xs:element>
            <xs:element name="CostTotal" type="xs:float" default="0"/>
            <xs:element name="RateECHeating" type="xs:float">
              <xs:annotation>
                <xs:documentation>Heating Energy Consumption (EC_x) in Rated Home (MBtu)</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="RateECCooling" type="xs:float">
              <xs:annotation>
                <xs:documentation>Cooling Energy Consumption (EC_x) in Rated Home (MBtu)</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="RateECHotWater" type="xs:float">
              <xs:annotation>
                <xs:documentation>Hot Water Energy Consumption (EC_x) in Rated Home (MBtu)</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="RateECLgtApl" type="xs:float">
              <xs:annotation>
                <xs:documentation>Lighting and Appliance Energy Consumption (EULLA) in the Rated Home (MBtu)</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="nMEULHeating" type="xs:float">
              <xs:annotation>
                <xs:documentation>Heating normalized Modified End Use Load (nMEUL) in Rated Home (MBtu)</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="nMEULCooling" type="xs:float">
              <xs:annotation>
                <xs:documentation>Cooling normalized Modified End Use Load (nMEUL) in Rated Home (MBtu)</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="nMEULHotWater" type="xs:float">
              <xs:annotation>
                <xs:documentation>Hot Water normalized Modified End Use Load (nMEUL) in Rated Home (MBtu)</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="nMEULLgtApl" type="xs:float">
              <xs:annotation>
                <xs:documentation>Lighting and Appliance load (EULLA) in Rated Home (MBtu)</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="nECHeating" type="xs:float">
              <xs:annotation>
                <xs:documentation>normalized Heating Energy Consumption (nEC_x) in Rated Home (MBtu)</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="nECCooling" type="xs:float">
              <xs:annotation>
                <xs:documentation>normalized Cooling Energy Consumption (nEC_x) in Rated Home (MBtu)</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="nECHotWater" type="xs:float">
              <xs:annotation>
                <xs:documentation>normalized Hot Water Energy Consumption (nEC_x) in Rated Home (MBtu)</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="nECLgtApl" type="xs:float">
              <xs:annotation>
                <xs:documentation>Lighting and Appliance Energy Consumption (EULLA) in Rated Home (MBtu)</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="CO2" type="xs:float"/>
            <xs:element name="SOx" type="xs:float"/>

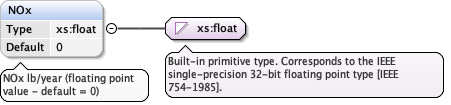

            <xs:element name="NOx" type="xs:float"/>
            <xs:element name="RefCostHeating" type="xs:float"/>
            <xs:element name="RefCostCooling" type="xs:float"/>
            <xs:element name="RefCostHotWater" type="xs:float"/>
            <xs:element name="RefCostLighting" type="xs:float"/>
            <xs:element name="RefCostAppliances" type="xs:float"/>
            <xs:element name="RefCostTotal" type="xs:float"/>
            <xs:element name="RefEULHeating" type="xs:float">
              <xs:annotation>
                <xs:documentation>Heating Load (REUL) in Reference Home (MBtu)</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="RefEULCooling" type="xs:float">
              <xs:annotation>
                <xs:documentation>Cooling Load (REUL) in Reference Home (MBtu)</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="RefEULHotWater" type="xs:float">
              <xs:annotation>
                <xs:documentation>Hot Water Load (REUL) in Reference Home (MBtu)</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="RefEULLgtApl" type="xs:float">
              <xs:annotation>
                <xs:documentation>Lighting and Appliance Load (REULLA) in Reference Home (MBtu)</xs:documentation>
              </xs:annotation>
            </xs:element>

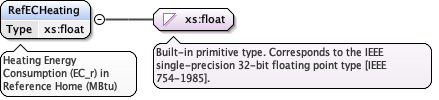

            <xs:element name="RefECHeating" type="xs:float">
              <xs:annotation>
                <xs:documentation>Heating Energy Consumption (EC_r) in Reference Home (MBtu)</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="RefECCooling" type="xs:float">
              <xs:annotation>
                <xs:documentation>Cooling Energy Consumption (EC_r) in Reference Home (MBtu)</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="RefECHotWater" type="xs:float">
              <xs:annotation>
                <xs:documentation>Hot Water Energy Consumption (EC_r) in Reference Home (MBtu)</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="RefECLgtApl" type="xs:float">
              <xs:annotation>
                <xs:documentation>Lighting and Appliance Energy Consumption (REULLA) in Reference Home (MBtu)</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="RefCO2" type="xs:float"/>
            <xs:element name="RefSOx" type="xs:float"/>
            <xs:element name="RefNOx" type="xs:float"/>
            <xs:element name="OPPNet" type="xs:float"/>
            <xs:element name="PEfrac" type="xs:float"/>
            <xs:element name="IADsave" type="xs:float" minOccurs="0"/>
            <xs:element name="CO2eIndex " type="xs:float" minOccurs="0"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="BuildersChallenge" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="BuilderPlanNo" type="xs:string"/>
            <xs:element name="BuilderContact" type="xs:string"/>
            <xs:element name="BuilderPhone" type="xs:string"/>
            <xs:element name="BuilderEmail" type="xs:string"/>
            <xs:element name="Developer" type="xs:string"/>
            <xs:element name="DeveloperContact" type="xs:string"/>
            <xs:element name="DeveloperPhone" type="xs:string"/>
            <xs:element name="DeveloperEmail" type="xs:string"/>
            <xs:element name="eScaleAttn" type="xs:string"/>
            <xs:element name="eScaleAddress" type="xs:string"/>
            <xs:element name="eScaleCity" type="xs:string"/>
            <xs:element name="eScaleState" type="state" nillable="true"/>
            <xs:element name="eScaleZip" type="xs:string"/>
            <xs:element name="eScalePhone" type="xs:string"/>
            <xs:element name="EnergyCostAnnually" type="xs:float" default="0"/>
            <xs:element name="EnergyCostMonthly" type="xs:float" default="0"/>
            <xs:element name="Electricity" type="xs:float" default="0"/>
            <xs:element name="Gas" type="xs:float" default="0"/>
            <xs:element name="Oil" type="xs:float" default="0"/>
            <xs:element name="Propane" type="xs:float" default="0"/>
            <xs:element name="SavingsElectricity" type="xs:float" default="0"/>
            <xs:element name="SavingsGas" type="xs:float" default="0"/>
            <xs:element name="SavingsOil" type="xs:float" default="0"/>

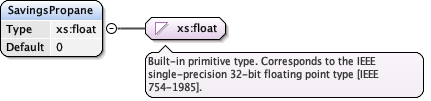

            <xs:element name="SavingsPropane" type="xs:float" default="0"/>
            <xs:element name="ReductionCO2" type="xs:float" default="0"/>
            <xs:element name="ReductionSOx" type="xs:float" default="0"/>
            <xs:element name="ReductionNOx" type="xs:float" default="0"/>
            <xs:element name="QualityCriteria" type="xs:boolean" default="false"/>
            <xs:element name="DisplayEnergyCostAnnually" type="xs:boolean" default="false"/>
            <xs:element name="DisplayEnergyCostMonthly" type="xs:boolean" default="false"/>
            <xs:element name="EnergyStar" type="xs:boolean" default="false"/>
            <xs:element name="EFL" type="xs:boolean" default="false"/>
            <xs:element name="LEED" type="xs:boolean" default="false"/>
            <xs:element name="GreenBuild" type="xs:boolean" default="false"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="EnergyStarV2" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="TBCCertification" type="xs:boolean" default="false"/>
            <xs:element name="AirConditioner" type="xs:boolean" default="false"/>
            <xs:element name="HeatPump" type="xs:boolean" default="false"/>
            <xs:element name="Furnace" type="xs:boolean" default="false"/>
            <xs:element name="Windows" type="xs:boolean" default="false"/>
            <xs:element name="WaterHeater" type="xs:boolean" default="false"/>
            <xs:element name="Refrigerator" type="xs:boolean" default="false"/>
            <xs:element name="Dishwasher" type="xs:boolean" default="false"/>
            <xs:element name="Washer" type="xs:boolean" default="false"/>
            <xs:element name="Dryer" type="xs:boolean" default="false"/>
            <xs:element name="Lights" type="xs:nonNegativeInteger" default="0"/>
            <xs:element name="CeilingFans" type="xs:nonNegativeInteger" default="0"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="TaxCredit" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="QualUseHeating" type="xs:float"/>
            <xs:element name="QualUseCooling" type="xs:float"/>
            <xs:element name="QualUseTotal" type="xs:float"/>
            <xs:element name="QualLoadHeating" type="xs:float"/>
            <xs:element name="QualLoadCooling" type="xs:float"/>
            <xs:element name="QualLoadTotal" type="xs:float"/>
            <xs:element name="RefUseHeating" type="xs:float"/>
            <xs:element name="RefUseCooling" type="xs:float"/>
            <xs:element name="RefUseTotal" type="xs:float"/>
            <xs:element name="RefLoadHeating" type="xs:float"/>
            <xs:element name="RefLoadCooling" type="xs:float"/>
            <xs:element name="RefLoadTotal" type="xs:float"/>
            <xs:element name="UseSavings" type="xs:float"/>
            <xs:element name="LoadSavings" type="xs:float"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="EEM" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="MonthlyEnergySavings" type="xs:float" default="0"/>
            <xs:element name="EnergyValue" type="xs:float" default="0"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="EEP">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="EEPQualified" type="xs:boolean" default="false" minOccurs="1">
              <xs:annotation>
                <xs:documentation>Energy Efficiency Program Qualified?</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="ProgramType" minOccurs="0">
              <xs:complexType>
                <xs:all>
                  <xs:element name="EPA" type="EPAEstarType" minOccurs="0" maxOccurs="1">
                    <xs:annotation>
                      <xs:documentation>ENERGY STAR program qualification</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="DOE" type="DOEZERHType" minOccurs="0" maxOccurs="1">
                    <xs:annotation>
                      <xs:documentation>Zero Energy Ready Home program qualification</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="IAP" type="IAPType" minOccurs="0" maxOccurs="1">
                    <xs:annotation>
                      <xs:documentation>Indoor Air-Plus qualification</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="PHIUS" type="PHIUSType" minOccurs="0" maxOccurs="1">
                    <xs:annotation>
                      <xs:documentation>PHIUS Program qualifiation</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="OPQ" type="OPQType" minOccurs="0" maxOccurs="1">
                    <xs:annotation>
                      <xs:documentation>Other Program qualification</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                </xs:all>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
          <xs:assert test="(((EEPQualified = false()) and not(ProgramType)) or ((EEPQualified = true()) and exists(ProgramType) and (count(./ProgramType/*) gt 0)))"/>
        </xs:complexType>
      </xs:element>
      <xs:element name="HomeEnergyPerformance">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="Enclosure" minOccurs="1" maxOccurs="1">
              <xs:complexType>
                <xs:sequence minOccurs="1">
                  <xs:element name="ABGradeFloorA" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>[A = ∑ Ai for i = 1, n]</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="ABGradeFloorUo" type="xs:float" minOccurs="0">
                    <xs:annotation>
                      <xs:documentation>[Uo = (∑ (Ui * Ai)) / A for i = 1, n]</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="GroundContactFloorA" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>[A = ∑ Ai for i = 1, n]</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="GroundContactFloorUo" type="xs:float" minOccurs="0">
                    <xs:annotation>
                      <xs:documentation>[Uo = (∑ (Ui * Ai)) / A for i = 1, n] [exterior film coeff = 0]</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="CeilingA" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>[A = ∑ Ai for i = 1, n]</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="CeilingUo" type="xs:float" minOccurs="0">
                    <xs:annotation>
                      <xs:documentation>[Uo = (∑ (Ui * Ai)) / A for i = 1, n]</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="ABGradeWallA" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>[A = ∑ Ai for i = 1, n]</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="ABGradeWallUo" type="xs:float" minOccurs="0">
                    <xs:annotation>
                      <xs:documentation>[Uo = (∑ (Ui * Ai)) / A for i = 1, n]</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="GroundContactWallA" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>[A = ∑ Ai for i = 1, n]</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="GroundContactWallUo" type="xs:float" minOccurs="0">
                    <xs:annotation>
                      <xs:documentation>[Uo = (∑ (Ui * Ai)) / A for i = 1, n] [exterior film coeff = 0]</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="WindowA" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>[A = ∑ Ai for i = 1, n]</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="WindowUo" type="xs:float" minOccurs="0">
                    <xs:annotation>
                      <xs:documentation>[Uo = (∑ (Ui * Ai)) / A for i = 1, n]</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="WindowSHGC" type="xs:float" minOccurs="0">
                    <xs:annotation>
                      <xs:documentation>[SHGCo = (∑ (SHGCi * Ai)) / A for i = 1, n]</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="DoorA" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>[A = ∑ Ai for i = 1, n]</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="DoorUo" type="xs:float" minOccurs="0">
                    <xs:annotation>
                      <xs:documentation>[Uo = (∑ (Ui * Ai)) / A for i = 1, n]</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="OverallEnclosureUA" type="xs:float">
                    <xs:annotation>
                      <xs:documentation>[Enclosure UA = AG Floor (Uo*A) + Ceiling (Uo*A) + AG Wall (Uo*A) + Window (Uo*A) + Door (Uo*A)]</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                </xs:sequence>
                <xs:assert test="((ABGradeFloorA[text()] = 0 and not(ABGradeFloorUo)) or (ABGradeFloorA[text()] gt 0 and exists(ABGradeFloorUo)))"/>
                <xs:assert test="((GroundContactFloorA[text()] = 0 and not(GroundContactFloorUo)) or (GroundContactFloorA[text()] gt 0 and exists(GroundContactFloorUo)))"/>
                <xs:assert test="((CeilingA[text()] = 0 and not(CeilingUo)) or (CeilingA[text()] gt 0 and exists(CeilingUo)))"/>
                <xs:assert test="((ABGradeWallA[text()] = 0 and not(ABGradeWallUo)) or (ABGradeWallA[text()] gt 0 and exists(ABGradeWallUo)))"/>
                <xs:assert test="((GroundContactWallA[text()] = 0 and not(GroundContactWallUo)) or (GroundContactWallA[text()] gt 0 and exists(GroundContactWallUo)))"/>
                <xs:assert test="((WindowA[text()] = 0 and not(WindowUo) and not(WindowSHGC)) or (WindowA[text()] gt 0 and exists(WindowUo) and exists(WindowSHGC)))"/>
                <xs:assert test="((DoorA[text()] = 0 and not(DoorUo)) or (DoorA[text()] gt 0 and exists(DoorUo)))"/>
                <xs:assert test="OverallEnclosureUA[text()] gt 0"/>
              </xs:complexType>
            </xs:element>
            <xs:element name="HVACHeatingSystems" minOccurs="1" maxOccurs="1">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="System" minOccurs="1" maxOccurs="unbounded">
                    <xs:complexType>
                      <xs:all>
                        <xs:element name="Fuel">
                          <xs:simpleType>
                            <xs:restriction base="xs:string">
                              <xs:enumeration value="electric"/>
                              <xs:enumeration value="gas"/>
                              <xs:enumeration value="oil"/>
                              <xs:enumeration value="propane"/>
                              <xs:enumeration value="biomass"/>
                            </xs:restriction>
                          </xs:simpleType>
                        </xs:element>
                        <xs:element name="Type">
                          <xs:simpleType>
                            <xs:restriction base="xs:string">
                              <xs:enumeration value="standard"/>
                              <xs:enumeration value="combo"/>
                              <xs:enumeration value="HeatPump"/>
                              <xs:enumeration value="other"/>
                            </xs:restriction>
                          </xs:simpleType>
                        </xs:element>
                        <xs:element name="RatingMetric">
                          <xs:simpleType>
                            <xs:restriction base="xs:string">
                              <xs:enumeration value="HSPF"/>
                              <xs:enumeration value="HSPF2"/>
                              <xs:enumeration value="COP"/>
                              <xs:enumeration value="AFUE"/>
                              <xs:enumeration value="cAFUE"/>
                            </xs:restriction>
                          </xs:simpleType>
                        </xs:element>
                        <xs:element name="RatingValue" type="xs:float">
                          <xs:annotation>
                            <xs:documentation/>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="RatedOutputCapacity" type="xs:float">
                          <xs:annotation>
                            <xs:documentation/>
                          </xs:annotation>
                        </xs:element>
                      </xs:all>
                    </xs:complexType>
                  </xs:element>
                </xs:sequence>
                <xs:attribute name="NumHVACHeatingSystems" type="xs:int" default="1"/>
                <xs:assert test="(@NumHVACHeatingSystems = count(System))"/>
              </xs:complexType>
            </xs:element>
            <xs:element name="HVACCoolingSystems" minOccurs="1" maxOccurs="1">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="System" minOccurs="1" maxOccurs="unbounded">
                    <xs:complexType>
                      <xs:all>
                        <xs:element name="Type">
                          <xs:simpleType>
                            <xs:restriction base="xs:string">
                              <xs:enumeration value="electric"/>
                              <xs:enumeration value="gas"/>
                              <xs:enumeration value="other"/>
                            </xs:restriction>
                          </xs:simpleType>
                        </xs:element>
                        <xs:element name="RatingMetric">
                          <xs:simpleType>
                            <xs:restriction base="xs:string">
                              <xs:enumeration value="SEER"/>
                              <xs:enumeration value="SEER2"/>
                              <xs:enumeration value="EER"/>
                              <xs:enumeration value="EER2"/>
                            </xs:restriction>
                          </xs:simpleType>
                        </xs:element>
                        <xs:element name="RatingValue" type="xs:float">
                          <xs:annotation>
                            <xs:documentation/>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="RatedOutputCapacity" type="xs:float">
                          <xs:annotation>
                            <xs:documentation>Rated Output Capacity (kBtu/h)</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                      </xs:all>
                    </xs:complexType>
                  </xs:element>
                </xs:sequence>
                <xs:attribute name="NumHVACCoolingSystems" type="xs:int" default="1"/>
                <xs:assert test="(@NumHVACCoolingSystems = count(System))"/>
              </xs:complexType>
            </xs:element>
            <xs:element name="HVACMechVentSystems" minOccurs="1" maxOccurs="1">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="System" minOccurs="0" maxOccurs="unbounded">
                    <xs:complexType>
                      <xs:all>
                        <xs:element name="Type">
                          <xs:annotation>
                            <xs:documentation>The following mechanical ventilation system Types are acceptable: none, Supply, Exhaust, HRV, ERV, CFIS, hybrid or other</xs:documentation>
                          </xs:annotation>
                          <xs:simpleType>
                            <xs:restriction base="xs:string">
                              <xs:enumeration value="none"/>
                              <xs:enumeration value="Supply">
                                <xs:annotation>
                                  <xs:documentation>A Supply-only ventilation system that brings in outdoor air</xs:documentation>
                                </xs:annotation>
                              </xs:enumeration>
                              <xs:enumeration value="Exhaust">
                                <xs:annotation>
                                  <xs:documentation>An Exhaust-only ventilation system that exhausts indoor air</xs:documentation>
                                </xs:annotation>
                              </xs:enumeration>
                              <xs:enumeration value="HRV">
                                <xs:annotation>
                                  <xs:documentation>A Heat Recovery Ventilator (HRV) is a Balanced System</xs:documentation>
                                </xs:annotation>
                              </xs:enumeration>
                              <xs:enumeration value="ERV">
                                <xs:annotation>
                                  <xs:documentation>An Energy Recovery Ventilator (ERV) is a Balanced System</xs:documentation>
                                </xs:annotation>
                              </xs:enumeration>
                              <xs:enumeration value="CFIS">
                                <xs:annotation>
                                  <xs:documentation>A Central Fan Integrated System (CFIS) or "Air Cycler" is a Supply ventilation system using the AHU to bring in and distribute outdoor air</xs:documentation>
                                </xs:annotation>
                              </xs:enumeration>
                              <xs:enumeration value="hybrid"/>
                              <xs:enumeration value="other"/>
                            </xs:restriction>
                          </xs:simpleType>
                        </xs:element>
                        <xs:element name="VentFanFlowRate" type="xs:float">
                          <xs:annotation>
                            <xs:documentation>Vent fan flow rate in cfm</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="VentFanPower" type="xs:float">
                          <xs:annotation>
                            <xs:documentation>Vent fan power in watts</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="VentFanRunTime" type="xs:float">
                          <xs:annotation>
                            <xs:documentation>Vent fan run time hours per day</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                      </xs:all>
                    </xs:complexType>
                  </xs:element>
                </xs:sequence>
                <xs:attribute name="NumHVACMechVentSystems" type="xs:int" use="required"/>
                <xs:assert test="(@NumHVACMechVentSystems = count(System))"/>
              </xs:complexType>
            </xs:element>
            <xs:element name="HVACDehumidificationSystems" minOccurs="1" maxOccurs="1">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="System" minOccurs="0" maxOccurs="unbounded">
                    <xs:complexType>
                      <xs:all>
                        <xs:element name="Type">
                          <xs:simpleType>
                            <xs:restriction base="xs:string">
                              <xs:enumeration value="none"/>
                              <xs:enumeration value="standard"/>
                              <xs:enumeration value="eStar"/>
                              <xs:enumeration value="other"/>
                            </xs:restriction>
                          </xs:simpleType>
                        </xs:element>
                        <xs:element name="Capacity" type="xs:float">
                          <xs:annotation>
                            <xs:documentation>Capacity in liters per day</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="Efficiency" type="xs:float">
                          <xs:annotation>
                            <xs:documentation>Efficiency in liters per kWh</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                      </xs:all>
                    </xs:complexType>
                  </xs:element>
                </xs:sequence>
                <xs:attribute name="NumHVACDehumidificationSystems" type="xs:int" use="required"/>
                <xs:assert test="(@NumHVACDehumidificationSystems = count(System))"/>
              </xs:complexType>
            </xs:element>
            <xs:element name="LightingAppliances" minOccurs="1" maxOccurs="1">
              <xs:complexType>
                <xs:sequence minOccurs="0">
                  <xs:element name="QualifyingLightingLtX" type="xs:float" minOccurs="0">
                    <xs:annotation>
                      <xs:documentation>percent lumens/watt less than 50</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="QualifyingLightingGeX" type="xs:float" minOccurs="0">
                    <xs:annotation>
                      <xs:documentation>percent fluorescent lighting</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="QualifyingLightingLED" type="xs:float" minOccurs="0">
                    <xs:annotation>
                      <xs:documentation>percent LED lighting</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="InteriorLightingFL" type="xs:float" minOccurs="0">
                    <xs:annotation>
                      <xs:documentation>decimal fraction for qualifying interior fluorescent lighting (Tier I)</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="InteriorLightingLED" type="xs:float" minOccurs="0">
                    <xs:annotation>
                      <xs:documentation>decimal fraction for qualifying interior LED lighting (Tier II)</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="ExteriorLightingFL" type="xs:float" minOccurs="0">
                    <xs:annotation>
                      <xs:documentation>decimal fraction for qualifying exterior fluorescent lighting (Tier I)</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="ExteriorLightingLED" type="xs:float" minOccurs="0">
                    <xs:annotation>
                      <xs:documentation>decimal fraction for qualifying exterior LED lighting (Tier II)</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="GarageLightingFL" type="xs:float" minOccurs="0">
                    <xs:annotation>
                      <xs:documentation>decimal fraction for qualifying garage fluorescent lighting (Tier I)</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="GarageLightingLED" type="xs:float" minOccurs="0">
                    <xs:annotation>
                      <xs:documentation>decimal fraction qualifying garage LED lighting (Tier II)</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="Refrigerator" default="standard">
                    <xs:simpleType>
                      <xs:restriction base="xs:string">
                        <xs:enumeration value="standard"/>
                        <xs:enumeration value="eStar"/>
                      </xs:restriction>
                    </xs:simpleType>
                  </xs:element>
                  <xs:element name="DishWasher" default="standard">
                    <xs:simpleType>
                      <xs:restriction base="xs:string">
                        <xs:enumeration value="standard"/>
                        <xs:enumeration value="eStar"/>
                      </xs:restriction>
                    </xs:simpleType>
                  </xs:element>
                  <xs:element name="ClothesWasher" default="standard">
                    <xs:simpleType>
                      <xs:restriction base="xs:string">
                        <xs:enumeration value="standard"/>
                        <xs:enumeration value="eStar"/>
                      </xs:restriction>
                    </xs:simpleType>
                  </xs:element>
                  <xs:element name="ClothesDryer" default="standard">
                    <xs:simpleType>
                      <xs:restriction base="xs:string">
                        <xs:enumeration value="standard"/>
                        <xs:enumeration value="eStar"/>
                      </xs:restriction>
                    </xs:simpleType>
                  </xs:element>
                  <xs:element name="CeilingFans" default="none">
                    <xs:simpleType>
                      <xs:restriction base="xs:string">
                        <xs:enumeration value="none"/>
                        <xs:enumeration value="standard"/>
                        <xs:enumeration value="eStar"/>
                      </xs:restriction>
                    </xs:simpleType>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="HotWaterSystems" minOccurs="1" maxOccurs="1">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="System" minOccurs="1" maxOccurs="unbounded">
                    <xs:complexType>
                      <xs:all>
                        <xs:element name="Type">
                          <xs:simpleType>
                            <xs:restriction base="xs:string">
                              <xs:enumeration value="electric"/>
                              <xs:enumeration value="gas"/>
                              <xs:enumeration value="oil"/>
                              <xs:enumeration value="propane"/>
                              <xs:enumeration value="biomass"/>
                              <xs:enumeration value="combo"/>
                            </xs:restriction>
                          </xs:simpleType>
                        </xs:element>
                        <xs:element name="EfficiencyUnits">
                          <xs:simpleType>
                            <xs:restriction base="xs:string">
                              <xs:enumeration value="EF"/>
                              <xs:enumeration value="UEF"/>
                              <xs:enumeration value="CEF"/>
                            </xs:restriction>
                          </xs:simpleType>
                        </xs:element>
                        <xs:element name="EfficiencyValue" type="xs:float">
                          <xs:annotation>
                            <xs:documentation/>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="StorageCapacity" type="xs:float">
                          <xs:annotation>
                            <xs:documentation>Storage capacity (Gallons)</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                      </xs:all>
                    </xs:complexType>
                  </xs:element>
                </xs:sequence>
                <xs:attribute name="NumHotWaterSystems" type="xs:int" default="1"/>
                <xs:assert test="(@NumHotWaterSystems = count(System))"/>
              </xs:complexType>
            </xs:element>
            <xs:element name="MeasuredEnclosureTightness" minOccurs="1" maxOccurs="1">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="MeasurementType">
                    <xs:annotation>
                      <xs:documentation>All Ratings using Threshold Analsyis, including all Sampled and Threshold Ratings, must use this "Threshold Type"</xs:documentation>
                    </xs:annotation>
                    <xs:simpleType>
                      <xs:restriction base="xs:string">
                        <xs:enumeration value="SinglePoint"/>
                        <xs:enumeration value="MultiPoint"/>
                        <xs:enumeration value="Threshold"/>
                      </xs:restriction>
                    </xs:simpleType>
                  </xs:element>
                  <xs:choice>
                    <xs:element name="SinglePoint" minOccurs="0">
                      <xs:complexType>
                        <xs:all>
                          <xs:element name="cfm50" type="xs:float" maxOccurs="unbounded"/>
                          <xs:element name="ELA" type="xs:float" maxOccurs="unbounded"/>
                        </xs:all>
                      </xs:complexType>
                    </xs:element>
                    <xs:element name="MultiPoint" minOccurs="0">
                      <xs:complexType>
                        <xs:all>
                          <xs:element name="c" type="xs:float" maxOccurs="unbounded"/>
                          <xs:element name="n" type="xs:float" maxOccurs="unbounded"/>
                          <xs:element name="RSqrd" type="xs:float" maxOccurs="unbounded"/>
                          <xs:element name="ELA" type="xs:float" maxOccurs="unbounded"/>
                        </xs:all>
                      </xs:complexType>
                    </xs:element>
                    <xs:element name="Threshold" minOccurs="0">
                      <xs:annotation>
                        <xs:documentation>...Threshold values must be reported for all homes using this "Measurement Type" ...Tested values must be reported for all Threshold Ratings ...Tested values must be reported for all tested homes in Samples Ratings sample sets</xs:documentation>
                      </xs:annotation>
                      <xs:complexType>
                        <xs:all>
                          <xs:element name="cfm50Threshold" type="xs:float" minOccurs="1" maxOccurs="unbounded"/>
                          <xs:element name="ELAThreshold" type="xs:float" minOccurs="1" maxOccurs="unbounded"/>
                          <xs:element name="cfm50Tested" type="xs:float" minOccurs="0" maxOccurs="unbounded"/>
                          <xs:element name="ELATested" type="xs:float" minOccurs="0" maxOccurs="unbounded"/>
                        </xs:all>
                      </xs:complexType>
                    </xs:element>
                  </xs:choice>
                </xs:sequence>
                <xs:assert test="(MeasurementType[text()] = 'SinglePoint' and exists(SinglePoint)) or (MeasurementType[text()] = 'MultiPoint' and exists(MultiPoint)) or (MeasurementType[text()] = 'Threshold' and exists(Theshold))"/>
              </xs:complexType>
            </xs:element>
            <xs:element name="DuctSystems" minOccurs="1" maxOccurs="1">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="System" minOccurs="1" maxOccurs="unbounded">
                    <xs:complexType>
                      <xs:all>
                        <xs:element name="Type">
                          <xs:annotation>
                            <xs:documentation>All Ratings using Threshold Analsyis, including all Sampled and Threshold Ratings, must use "Threshold Type"</xs:documentation>
                          </xs:annotation>
                          <xs:simpleType>
                            <xs:restriction base="xs:string">
                              <xs:enumeration value="ductless"/>
                              <xs:enumeration value="ducted"/>
                              <xs:enumeration value="Threshold ductless"/>
                              <xs:enumeration value="Threshold ducted"/>
                            </xs:restriction>
                          </xs:simpleType>
                        </xs:element>
                        <xs:element name="TestedLeakageException" minOccurs="0">
                          <xs:annotation>
                            <xs:documentation>Unless DuctSystem is qualified for testing exception or for TotalLeakAlternative, then TestedLeakage entries are required.</xs:documentation>
                          </xs:annotation>
                          <xs:complexType>
                            <xs:all>
                              <xs:element name="QualificationCertification" type="xs:boolean" default="false" minOccurs="1">
                                <xs:annotation>
                                  <xs:documentation>Certifies either of two things. First, that this dwelling unit meets the requirements for duct testing exemption in accordance with the RESNET Standard. Or, that it meets the requirements for the total duct leakage alternatives described in the RESNET Standard.</xs:documentation>
                                </xs:annotation>
                              </xs:element>
                              <xs:element name="ExceptionType" minOccurs="0">
                                <xs:simpleType>
                                  <xs:restriction base="xs:string">
                                    <xs:enumeration value="TestExemptDSE"/>
                                    <xs:enumeration value="TotalLeakAlternative"/>
                                  </xs:restriction>
                                </xs:simpleType>
                              </xs:element>

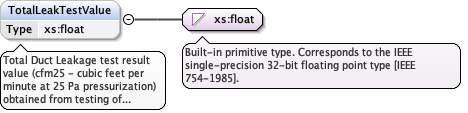

                              <xs:element name="TotalLeakTestValue" type="xs:float" minOccurs="0">
                                <xs:annotation>
                                  <xs:documentation>Total Duct Leakage test result value (cfm25 - cubic feet per minute at 25 Pa pressurization) obtained from testing of the Rated Dwelling Unit that is qualified for Tested Leakge Exception.</xs:documentation>
                                </xs:annotation>
                              </xs:element>
                              <xs:element name="PercentDuctInsideAttached" type="xs:float" minOccurs="0">
                                <xs:annotation>
                                  <xs:documentation>Percentage of duct area inside the Conditioned Space Volume for Attached Dwelling Unit qualified for Tested Leakage Exception using ExceptionType = TotalLeakAlternative. Not for use with ExceptionType = TestExemptDSE.</xs:documentation>
                                </xs:annotation>
                              </xs:element>
                              <xs:element name="AirHandlerInsideAttached" type="xs:boolean" default="false" minOccurs="0">
                                <xs:annotation>
                                  <xs:documentation>Determination if air handler unit is within the Conditioned Space Volume for Attached Dwelling units qualified for Tested Leakage Exception using ExceptionType = TotalLeakAlternative. Not for use with ExceptionType = TestExemptDSE.</xs:documentation>
                                </xs:annotation>
                              </xs:element>
                            </xs:all>
                          </xs:complexType>
                        </xs:element>
                        <xs:element name="TestedLeakage" minOccurs="0">
                          <xs:complexType>
                            <xs:all>
                              <xs:element name="cfm25outThreshold" type="xs:float" minOccurs="0"/>
                              <xs:element name="cfm25totalThreshold" type="xs:float" minOccurs="0"/>
                              <xs:element name="QnThreshold" type="xs:float" minOccurs="0">
                                <xs:annotation>
                                  <xs:documentation>If Threshold ducted, enter ...Threshold values required for all Sampled and Threshold Ratings</xs:documentation>
                                  <xs:documentation>If Threshold ductless, do not enter ...Threshold values</xs:documentation>
                                  <xs:documentation>Qn=cfm25out/CFA</xs:documentation>
                                </xs:annotation>
                              </xs:element>
                              <xs:element name="cfm25outTested" type="xs:float" minOccurs="0"/>
                              <xs:element name="cfm25totalTested" type="xs:float" minOccurs="0"/>
                              <xs:element name="QnTested" type="xs:float" minOccurs="0">
                                <xs:annotation>
                                  <xs:documentation>...Tested values required for all Confirmed Ratings, all Threshold Ratings and for the tested home in sample set for Sampled Ratings</xs:documentation>
                                  <xs:documentation>Qn=cfm25out/CFA</xs:documentation>
                                </xs:annotation>
                              </xs:element>
                            </xs:all>
                          </xs:complexType>
                        </xs:element>
                        <xs:element name="SupplyDuctsCondSpace" type="xs:float">
                          <xs:annotation>
                            <xs:documentation>% supply ducts located in conditioned space</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="ReturnDuctsCondSpace" type="xs:float">
                          <xs:annotation>
                            <xs:documentation>% return ducts located in conditioned space</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                      </xs:all>
                    </xs:complexType>
                  </xs:element>
                </xs:sequence>
                <xs:attribute name="NumDuctSystems" type="xs:int" default="1"/>
                <xs:assert test="(@NumDuctSystems = count(System))"/>
              </xs:complexType>
            </xs:element>
            <xs:element name="AddedEnergyFeatures" minOccurs="1" maxOccurs="1">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="OPP">
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="CheckOPP" type="xs:boolean" default="false" minOccurs="0">
                          <xs:annotation>
                            <xs:documentation>On-site Power Production (OPP)</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="Type" minOccurs="0">
                          <xs:simpleType>
                            <xs:restriction base="xs:string">
                              <xs:enumeration value="PV"/>
                              <xs:enumeration value="CHP"/>
                              <xs:enumeration value="wind"/>
                              <xs:enumeration value="other"/>
                            </xs:restriction>
                          </xs:simpleType>
                        </xs:element>
                        <xs:element name="NetPowerProduction" type="xs:float" minOccurs="0">
                          <xs:annotation>
                            <xs:documentation>Net power production</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                      </xs:sequence>
                      <xs:assert test="(not(CheckOPP) or (CheckOPP = false() and not(Type) and not(NetPowerProduction)) or (CheckOPP = true() and Type and NetPowerProduction))"/>
                    </xs:complexType>
                  </xs:element>
                  <xs:element name="SolarHotWaterSystems" minOccurs="0" maxOccurs="1">
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="SHWS" type="xs:boolean" default="false">
                          <xs:annotation>
                            <xs:documentation>Solar Hot Water Systems</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="Type" minOccurs="0">
                          <xs:simpleType>
                            <xs:restriction base="xs:string">
                              <xs:enumeration value="direct"/>
                              <xs:enumeration value="indirect"/>
                              <xs:enumeration value="ICS"/>
                            </xs:restriction>
                          </xs:simpleType>
                        </xs:element>
                        <xs:element name="ProjectedSavings" type="xs:float" minOccurs="0">
                          <xs:annotation>
                            <xs:documentation>Enter Projected annual MBtu savings for Solar Hot Water System</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="SolarFraction" type="xs:float" minOccurs="0">
                          <xs:annotation>
                            <xs:documentation>Enter the Solar Fraction as a decimal value for solar hot water system)</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                      </xs:sequence>
                      <xs:assert test="((SHWS[text()] = false() and not(Type) and not(ProjectedSavings) and not(SolarFraction)) or (SHWS[text()] = true() and exists(Type) and exists(ProjectedSavings) and exists(SolarFraction)))"/>
                    </xs:complexType>
                  </xs:element>
                  <xs:element name="DWHR" minOccurs="1" maxOccurs="1">
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="CheckDWHR" type="xs:boolean" default="false" minOccurs="0">
                          <xs:annotation>
                            <xs:documentation>Drain Water Heat Recovery Systems (DWHR)</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="DWHREfficiency" type="xs:float" default="46" minOccurs="0">
                          <xs:annotation>
                            <xs:documentation>DWHR efficiency (% - default = 46%)</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="FacilitiesServed" default="one" minOccurs="0">
                          <xs:simpleType>
                            <xs:restriction base="xs:string">
                              <xs:enumeration value="one"/>
                              <xs:enumeration value="all"/>
                            </xs:restriction>
                          </xs:simpleType>
                        </xs:element>
                        <xs:element name="EqualFlow" type="xs:boolean" default="false" minOccurs="0"/>
                        <xs:element name="ProjectedSavings" type="xs:float" minOccurs="0">
                          <xs:annotation>
                            <xs:documentation>Projected Savings (MBtu/y = Rated EC_x - Reference EC_r)</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                      </xs:sequence>
                      <xs:assert test="((CheckDWHR[text()] = false() and not(DWHREfficiency) and not(FacilitiesServed) and not(EqualFlow) and not(ProjectedSavings)) or (CheckDWHR[text()] = true() and exists(DWHREfficiency) and exists(FacilitiesServed) and exists(EqualFlow) and exists(ProjectedSavings)))"/>
                    </xs:complexType>
                  </xs:element>

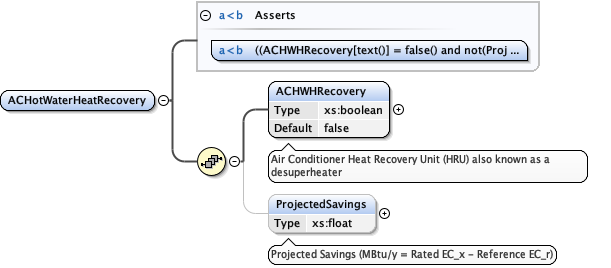

                  <xs:element name="ACHotWaterHeatRecovery" minOccurs="1" maxOccurs="1">
                    <xs:complexType>
                      <xs:sequence>
                        <xs:element name="ACHWHRecovery" type="xs:boolean" default="false">
                          <xs:annotation>
                            <xs:documentation>Air Conditioner Heat Recovery Unit (HRU) also known as a desuperheater</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="ProjectedSavings" type="xs:float" minOccurs="0">
                          <xs:annotation>
                            <xs:documentation>Projected Savings (MBtu/y = Rated EC_x - Reference EC_r)</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                      </xs:sequence>
                      <xs:assert test="((ACHWHRecovery[text()] = false() and not(ProjectedSavings)) or (ACHWHRecovery[text()] = true() and exists(ProjectedSavings)))"/>
                    </xs:complexType>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="WholeHEEffDesignations" minOccurs="0" maxOccurs="2">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="EPAEStarNewHome" type="xs:boolean" default="false"/>
                  <xs:element name="DOEZHRH" type="xs:boolean" default="false"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="HVACCommissioning" minOccurs="0">
              <xs:complexType>
                <xs:sequence maxOccurs="1">
                  <xs:element name="System" minOccurs="1" maxOccurs="unbounded">
                    <xs:complexType>
                      <xs:all>
                        <xs:element name="SystemID" type="xs:string">
                          <xs:annotation>
                            <xs:documentation>Provide unique identification for this HVAC system (e.g. Cooling-01)</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="TotalMaxCoolingLoad" type="xs:float" minOccurs="0">
                          <xs:annotation>
                            <xs:documentation>Total Maximum Cooling Load(kBtu/h)</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="HeatingLoad" type="xs:float" minOccurs="0">
                          <xs:annotation>
                            <xs:documentation>Heating Load (kBtu/h)</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="TotalDuctLeakageException" type="xs:boolean" default="false">
                          <xs:annotation>
                            <xs:documentation>Was Total Duct Leakage exception used?</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="AlternativeTestingCompleted" type="xs:boolean" default="false">
                          <xs:annotation>
                            <xs:documentation>Was alternative testing completed per ANSI/ACCA 5 QI ?</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="TotalDuctLeakage" type="xs:float" minOccurs="0">
                          <xs:annotation>
                            <xs:documentation>Total normalized duct leakage served by system (cfm25/CFA)</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="TotalDuctLeakageGradeDesignation">
                          <xs:annotation>
                            <xs:documentation>Total Duct Leakage Grade Designation</xs:documentation>
                          </xs:annotation>
                          <xs:simpleType>
                            <xs:annotation>
                              <xs:documentation/>
                            </xs:annotation>
                            <xs:restriction base="xs:string">
                              <xs:enumeration value="I"/>
                              <xs:enumeration value="II"/>
                              <xs:enumeration value="III"/>
                            </xs:restriction>
                          </xs:simpleType>
                        </xs:element>
                        <xs:element name="BlowerFanAirflowException" type="xs:boolean" default="false">
                          <xs:annotation>
                            <xs:documentation>Was Blower Fan Airflow exception used?</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="AirflowTestMethod" minOccurs="0">
                          <xs:annotation>
                            <xs:documentation>Airflow test method</xs:documentation>
                          </xs:annotation>
                          <xs:simpleType>
                            <xs:annotation>
                              <xs:documentation/>
                            </xs:annotation>
                            <xs:restriction base="xs:string">
                              <xs:enumeration value="Pressure Matching"/>
                              <xs:enumeration value="Flow Grid"/>
                              <xs:enumeration value="Flow Hood"/>
                              <xs:enumeration value="Static Pressure Table"/>
                            </xs:restriction>
                          </xs:simpleType>
                        </xs:element>
                        <xs:element name="BlowerfanAirflowDesignSpecified" type="xs:int" minOccurs="0">
                          <xs:annotation>
                            <xs:documentation>Design-specified blower fan airflow (CFM)</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="BlowerfanAirflowOpCond" type="xs:int" minOccurs="0">
                          <xs:annotation>
                            <xs:documentation>Blower fan airflow at operating conditions (CFM)</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="PressureDiffOEM" type="xs:float" minOccurs="0">
                          <xs:annotation>
                            <xs:documentation>Pressure difference for OEM Static Pressure Table (IWC)</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="AirflowFault" type="xs:float">
                          <xs:annotation>
                            <xs:documentation>Airflow Fault (%)</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="BlowerfanVolumetricAirflowGrade">
                          <xs:annotation>
                            <xs:documentation>Blower fan volumetric airflow grade</xs:documentation>
                          </xs:annotation>
                          <xs:simpleType>
                            <xs:annotation>
                              <xs:documentation/>
                            </xs:annotation>
                            <xs:restriction base="xs:string">
                              <xs:enumeration value="I"/>
                              <xs:enumeration value="II"/>
                              <xs:enumeration value="III"/>
                            </xs:restriction>
                          </xs:simpleType>
                        </xs:element>
                        <xs:element name="TestmethodBlowerFanWattDraw" minOccurs="0">
                          <xs:annotation>
                            <xs:documentation>Test method for measuring blower fan watt draw</xs:documentation>
                          </xs:annotation>
                          <xs:simpleType>
                            <xs:annotation>
                              <xs:documentation/>
                            </xs:annotation>
                            <xs:restriction base="xs:string">
                              <xs:enumeration value="Portable Plug-In Watt Meter"/>
                              <xs:enumeration value="Clamp-On Watt Meter"/>
                              <xs:enumeration value="Analog Utility Revenue Meter"/>
                              <xs:enumeration value="Digital Utility Revenue Meter"/>
                            </xs:restriction>
                          </xs:simpleType>
                        </xs:element>
                        <xs:element name="BlowerfanWattDraw" type="xs:int" minOccurs="0">
                          <xs:annotation>
                            <xs:documentation>Watt draw of blower fan (W)</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="BlowerfanEfficiency" type="xs:float" minOccurs="0">
                          <xs:annotation>
                            <xs:documentation>Blower fan efficiency (W/CFM)</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="BlowerfanWattDrawGrade">
                          <xs:annotation>
                            <xs:documentation>Blower fan watt draw grade</xs:documentation>
                          </xs:annotation>
                          <xs:simpleType>
                            <xs:annotation>
                              <xs:documentation/>
                            </xs:annotation>
                            <xs:restriction base="xs:string">
                              <xs:enumeration value="I"/>
                              <xs:enumeration value="II"/>
                              <xs:enumeration value="III"/>
                            </xs:restriction>
                          </xs:simpleType>
                        </xs:element>
                        <xs:element name="AltSourceValuesWithinLimits" type="xs:boolean" default="false">
                          <xs:annotation>
                            <xs:documentation>Did alternative source provide superheat / subcooling values that meet the limits specified within ANSI/ACCA 5 QI Section 4.3.1?</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="TestmethodRefrigerantCharge">
                          <xs:annotation>
                            <xs:documentation>Test method for assessing refrigerant charge</xs:documentation>
                          </xs:annotation>
                          <xs:simpleType>
                            <xs:annotation>
                              <xs:documentation/>
                            </xs:annotation>
                            <xs:restriction base="xs:string">
                              <xs:enumeration value="Non-Invasive"/>
                              <xs:enumeration value="Weigh-In"/>
                              <xs:enumeration value="On-board Diagnostic"/>
                              <xs:enumeration value="Independent Report"/>
                              <xs:enumeration value="Not Applicable"/>
                            </xs:restriction>
                          </xs:simpleType>
                        </xs:element>
                        <xs:element name="MeteringDeviceType">
                          <xs:annotation>
                            <xs:documentation>Metering device type</xs:documentation>
                          </xs:annotation>
                          <xs:simpleType>
                            <xs:annotation>
                              <xs:documentation/>
                            </xs:annotation>
                            <xs:restriction base="xs:string">
                              <xs:enumeration value="Piston/Cap Tube"/>
                              <xs:enumeration value="TXV/EEV"/>
                              <xs:enumeration value="Not Applicable"/>
                            </xs:restriction>
                          </xs:simpleType>
                        </xs:element>
                        <xs:element name="MeasuredOutdoorAirDryBulbTemp" type="xs:float" minOccurs="0">
                          <xs:annotation>
                            <xs:documentation>Measured outdoor air dry-bulb temperature (F)</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="DifferenceDTD" type="xs:float" minOccurs="0">
                          <xs:annotation>
                            <xs:documentation>DifferenceDTD (F)</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="DifferenceCTOA" type="xs:float" minOccurs="0">
                          <xs:annotation>
                            <xs:documentation>DifferenceCTOA (F)</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="TotalReportedRefrigerantWeight" type="xs:float" minOccurs="0">
                          <xs:annotation>
                            <xs:documentation>Total reported refrigerant weight (oz)</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="Deviation" type="xs:float" minOccurs="0">
                          <xs:annotation>
                            <xs:documentation>Absolute value of deviation btw total anticipated and reported refrigerant weight (%)</xs:documentation>
                          </xs:annotation>
                        </xs:element>
                        <xs:element name="RefrigerantChargeGradeDesignation">
                          <xs:annotation>
                            <xs:documentation>Refrigerant charge grade designation</xs:documentation>
                          </xs:annotation>
                          <xs:simpleType>
                            <xs:annotation>
                              <xs:documentation/>
                            </xs:annotation>
                            <xs:restriction base="xs:string">
                              <xs:enumeration value="I"/>
                              <xs:enumeration value="II"/>
                              <xs:enumeration value="III"/>
                            </xs:restriction>
                          </xs:simpleType>
                        </xs:element>
                      </xs:all>
                      <xs:assert test="not(AirflowTestMethod = 'Static Pressure Table') or PressureDiffOEM" xerces:message="AirflowTestMethod is 'Static Pressure Table' so please enter PresessureDiffOEM."/>
                      <xs:assert test="not(TestmethodRefrigerantCharge = 'Non-Invasive' and MeteringDeviceType = 'Piston/Cap Tube') or DifferenceDTD" xerces:message="TestmethodRefrigerantCharge is 'Non-Invasive' and MeteringDeviceType 'Piston/Cap Tube' so please enter DifferenceDTD."/>
                      <xs:assert test="not(TestmethodRefrigerantCharge = 'Non-Invasive' and MeteringDeviceType = 'TXV/EEV') or DifferenceCTOA" xerces:message="TestmethodRefrigerantCharge is 'Non-Invasive' and MeteringDeviceType 'TXV/EEV' so please enter DifferenceCTOA."/>
                      <xs:assert test="not(TestmethodRefrigerantCharge = 'Weigh-In') or Deviation" xerces:message="TestmethodRefrigerantCharge is 'Weigh-In' so please enter Deviation."/>
                    </xs:complexType>
                  </xs:element>
                </xs:sequence>
                <xs:attribute name="NumHVACCommissioningSystems" type="xs:int" default="0"/>
                <xs:assert test="(@NumHVACCommissioningSystems = count(System))" xerces:message="The number of System should match with value of NumHVACCommissioningSystems. "/>
              </xs:complexType>
              <xs:key name="SystemID_key">
                <xs:selector xpath="System"/>
                <xs:field xpath="SystemID"/>
              </xs:key>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="WarningFlags" minOccurs="1" maxOccurs="1">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="BuildingAttributeFlags">
              <xs:annotation>
                <xs:documentation>[See Section 5.1, RESNET Publication 002-15 for full explanation of elements in this element}</xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="StoriesAboveGradeValue" type="xs:int" minOccurs="1" maxOccurs="1">
                    <xs:annotation>
                      <xs:documentation>[Integer equal to the number of stories above grade; GE 1 and LE 4]</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="AverageCeilingHeightValue" type="xs:float" minOccurs="1" maxOccurs="1">
                    <xs:annotation>
                      <xs:documentation>[Floating point value equal to the volume/CFA expressed in feet; GE 7 and LE 15]</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="BelowGradeSlabFloorsValue" type="xs:int" minOccurs="1" maxOccurs="1">
                    <xs:annotation>
                      <xs:documentation>[Integer equal to the number of below grade slab floors; GE 1 if below grade walls]</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="BelowGradeWallsValue" type="xs:int" minOccurs="1" maxOccurs="1">
                    <xs:annotation>
                      <xs:documentation>[Integer equal to the number of below grade walls: GE 1 if bleow grade slab floors]</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="CrawlSpacePerimeterValue" type="xs:float" minOccurs="1" maxOccurs="1">
                    <xs:annotation>
                      <xs:documentation>[Floating point value equal to crawl space perimeter expressed in feet; GE 1 and LE (Enclosure Floor Area)^0.5*7]</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="BasementPerimeterValue" type="xs:float" minOccurs="1" maxOccurs="1">
                    <xs:annotation>
                      <xs:documentation>[Floating point value equal to basement perimeter expressed in feet; GE 1 and LE (Enclosure Floor Area)^0.5*7]</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="SlabGradePerimeterValue" type="xs:float" minOccurs="1" maxOccurs="1">
                    <xs:annotation>
                      <xs:documentation>[Floating point value equal to the slab perimeter expressed in feet; GE 1 and LE (Enclosure Floor Area)^0.5*7]</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="FoundationWallHeightValue" type="xs:float" minOccurs="1" maxOccurs="1">
                    <xs:annotation>
                      <xs:documentation>[Floating point value equal to the foundation wall height from ground level to top of foundation expressed in feet; GT 0 and LE 20]</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="BasementWallDepthValue" type="xs:float" minOccurs="1" maxOccurs="1">
                    <xs:annotation>
                      <xs:documentation>[Floating point value equal to the basement wall depth below grade expressed in feet; GE 2 and LE (wall height - 0.5)]</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="EnclosureFloorAreaValue" type="xs:float" minOccurs="1" maxOccurs="1">
                    <xs:annotation>
                      <xs:documentation>[Floating point value equal to the enclosure floor area expressed in feet]</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="EnclosureGrossWallAreaValue" type="xs:float" minOccurs="1" maxOccurs="1">
                    <xs:annotation>
                      <xs:documentation>[Floating point value equal to gross wall area of the enclosure expressed in square feet</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="NumberConditionedStories" type="xs:integer" minOccurs="1" maxOccurs="1">
                    <xs:annotation>
                      <xs:documentation>[Integer value equal to number of conditioned stories, including conditioned basements</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:element name="ApplianceVerificationFlags" minOccurs="1" maxOccurs="1">
              <xs:annotation>
                <xs:documentation>[See Section 5.3, RESNET Publication 002-15 for details on this element. Include the value for each of the available appliance types]</xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="ClothesWashersValue" type="xs:float" minOccurs="1" maxOccurs="unbounded">
                    <xs:annotation>
                      <xs:documentation>{Floating point value [(21*Nbr+73)> CWkWh >(4.7*Nbr+16.4)]}</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="ElectricDryersValue" type="xs:float" minOccurs="0" maxOccurs="unbounded">
                    <xs:annotation>
                      <xs:documentation>{Floating point value [(163*Nbr+577)> eCDkWh >(55*Nbr+194)]}</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="GasDryersThermsValue" type="xs:float" minOccurs="0" maxOccurs="unbounded">
                    <xs:annotation>
                      <xs:documentation>{Floating point value [(5.9*Nbr+20.6)> gCDtherms >(2.0*Nbr+6.9)]}</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="GasDryersKWHValue" type="xs:float" minOccurs="0" maxOccurs="unbounded">
                    <xs:annotation>
                      <xs:documentation>{Floating point value [(12.9*Nbr+45.5)> gCDkWh >(4.3*Nbr+15.3)]}</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                  <xs:element name="CWHotWaterSavingsValue" type="xs:float" minOccurs="1" maxOccurs="unbounded">
                    <xs:annotation>
                      <xs:documentation>{Floating point value [(0.59*Nbr+2.1)> CW HWgalSaved/day]}</xs:documentation>
                    </xs:annotation>
                  </xs:element>
                </xs:sequence>
                <xs:assert test="((exists(ElectricDryersValue)) or (exists(GasDryersThermsValue) and exists(GasDryersKWHValue)))"/>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

<Revision>
  <RegistryID>{1,1}</RegistryID>
  <RevisionReason>{1,1}</RevisionReason>
</Revision>

<xs:element name="Revision" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="RegistryID">
        <xs:simpleType>
          <xs:annotation>
            <xs:documentation>9-digit Numeric RegistryID</xs:documentation>
          </xs:annotation>
          <xs:restriction base="xs:string">
            <xs:pattern value="[0-9]{9}"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <xs:element name="RevisionReason" type="xs:string"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

<xs:element name="RegistryID">
  <xs:simpleType>
    <xs:annotation>
      <xs:documentation>9-digit Numeric RegistryID</xs:documentation>
    </xs:annotation>
    <xs:restriction base="xs:string">
      <xs:pattern value="[0-9]{9}"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

<xs:element name="RevisionReason" type="xs:string"/>

<xs:element name="RatingType">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="Confirmed"/>
      <xs:enumeration value="Confirmed Rating"/>
      <xs:enumeration value="Confirmed Threshold"/>
      <xs:enumeration value="Confirmed Threshold Rating"/>
      <xs:enumeration value="Sampled"/>
      <xs:enumeration value="Sampled Rating"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

<Verifiers>
  <Verifier>{1,unbounded}</Verifier>
</Verifiers>

<xs:element name="Verifiers" minOccurs="1" maxOccurs="1">
  <xs:complexType>
    <xs:sequence maxOccurs="unbounded">
      <xs:element name="Verifier" minOccurs="1" maxOccurs="unbounded">
        <xs:complexType>
          <xs:all>
            <xs:element name="Name" type="xs:string"/>
            <xs:element name="ID" type="xs:string">
              <xs:annotation>
                <xs:documentation/>
              </xs:annotation>
            </xs:element>
          </xs:all>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

<Verifier>
  <Name>{1,1}</Name>
  <ID>{1,1}</ID>
</Verifier>

<xs:element name="Verifier" minOccurs="1" maxOccurs="unbounded">
  <xs:complexType>
    <xs:all>
      <xs:element name="Name" type="xs:string"/>
      <xs:element name="ID" type="xs:string">
        <xs:annotation>
          <xs:documentation/>
        </xs:annotation>
      </xs:element>
    </xs:all>
  </xs:complexType>
</xs:element>
